PRODUCT PROMISE
Rapid PCB prototyping service: PCBs manufactured and assembled as quickly as you need them. Wells can provide full turnkey boards in as fast as 5 days!
Create your boards entirely online
- Fabricación de placas de circuito impreso
- Component procurement
- In-house assembly
Assembly Specs:
- Dedicated CAM engineer
- BOM check
- DFA check
- DFM check
- 100% net-list testing
Prototype More Effectively
- 1 – 100 fully assembled boards
- Built to IPC-6012 class 2 specs
- UL approved
- Standard FR-4 material with ENIG or HASL finish
| Capability Category | Specification | Capability Value | Unit | Remarks |
|---|---|---|---|---|
| PCB Specifications | PCB Thickness | 0.4 – 3.2 | mm | Standard: 1.6mm |
| Number of Layers | 2 – 16 | Layers | Max 16-layer HDI available | |
| Minimum Trace Width | 0.1 | mm | HDI: 0.08mm | |
| Minimum Trace Spacing | 0.1 | mm | HDI: 0.08mm | |
| SMT Assembly | Minimum Component Size | 01005 (0.4mm×0.2mm) | – | Support 01005, 0201, 0402, etc. |
| Maximum Component Height | 25 | mm | Customizable for special components | |
| Pitch of QFP/BGA | 0.4 | mm | Support BGA, QFP, LQFP, QFN | |
| Soldering Process | Solder Paste Printing Accuracy | ±0.03 | mm | Equipped with automatic stencil printer |
| Mounting Accuracy | ±0.02 | mm | High-speed SMT placement machine | |
| Through-Hole Assembly | Minimum Hole Diameter | 0.3 | mm | Compatible with standard through-hole components |
| Maximum Pin Diameter | 2.0 | mm | Support DIP, TO packages | |
| Wave Soldering Temperature | 250 – 260 | ℃ | Lead-free soldering available | |
| Testing Capability | Visual Inspection | AOI + Manual | – | 100% visual inspection |
| Electrical Testing | ICT / FCT | – | Custom test fixtures available | |
| X-Ray Inspection | BGA/X-Ray Detection | – | Check BGA solder joints | |
| Functional Testing | Customized Test | – | Based on customer requirements | |
| Production Capacity | Daily Production Capacity | 5000 – 20000 | PCS | Depends on PCBA complexity |
| Lead Time | 3 – 7 | Days | Sample: 1 – 3 days |
High-quality, high-performance PCBs. Fully assembled. Made to order. Ready to ship in as quick as 5 days.
Whether you’re an aerospace engineer on a tight deadline or a procurement officer looking to simplify your supply chain, Turnkey PRO is the most dependable full-service turnkey PCB solution.
IDEAL FOR:
- PCB designers and electrical engineers building prototypes or bringing products to market.
- Contract manufacturers who need fast, predictable lead times.
- Purchasing teams who require pricing and supply-chain transparency.
- Tinkerers, hobbyists, and builders who would benefit from the expertise of our in-house CAM engineers.
TURNKEY PRO ALSO INCLUDES:
- Fabricación de placas de circuito impreso
- Component procurement
- In-house assembly

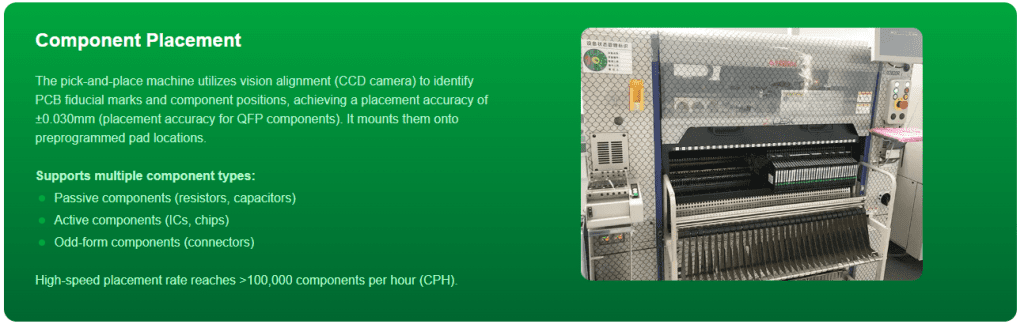

Manufacturing Equipment at Wells
Our 70,000 sqft state-of-the-art campus in the heart of Shenzhen contains the most advanced equipment required for the manufacture and assembly of your PCBs. Whether you’re looking for standard quick turn PCBs or boards with the tightest tolerances, made from exotic metals, there’s a reason Wells leads the industry in quality and performance.Our Shenzhen facility is equipped with advanced equipment for PCB fabrication and assembly, including AOI, X‑RAY inspection, reflow ovens, and pick‑and‑place lines—ensuring tight tolerances and consistent quality.
FAQs OF ELECTRONIC MANUFACTURING SERVICES
What files should be sent to get a contract electronic manufacturing quote?
What's the lead time to get the first product sample generally?
Can I get refund if the electronic manufacturing product is not satisfied?
