Precision SMT Assembly for RK3588: A Complete Guide to High-Reliability Manufacturing

When you’re building industrial-grade hardware around a powerful processor like the Rockchip RK3588, the difference between a reliable product and a field failure often comes down to one thing: SMT assembly quality.

As a leading PCB assembly provider, WellPCBA has seen how even microscopic process deviations can turn a high-performance core board into an expensive paperweight. This guide walks you through the specialized SMT assembly process for advanced embedded systems—from smart component selection to 3D X-Ray validation.

Why RK3588 Projects Demand Extreme SMT Assembly Precision

The RK3588 is a beast, built on an 8nm process for industrial PCs and edge AI devices. However, its extremely dense BGA packaging (with a pitch as tight as 0.4mm) creates manufacturing hurdles that standard assembly lines cannot handle.

At this scale, a minor solder paste misalignment in the SMT assembly line can cause:

• Hidden BGA short circuits that only appear under thermal stress.
• Intermittent connections that pass initial testing but fail in the field.
• Poor heat transfer, leading to premature thermal throttling.

That’s why we apply IPC Class 3 standards to every high-performance project to ensure mission-critical stability.

Phase 1: Critical Component Selection (DFM for SMT)

Smart SMT assembly starts with Design for Manufacturing (DFM). Component selection determines 50% of your final assembly yield.

1. High-Density Board Stackup

RK3588 demands 8- to 12-layer HDI boards with blind and buried vias. Explore our HDI PCB manufacturing capabilities to see how we manage impedance matching for PCIe 3.0.

2. Certified Memory & PMIC

Don’t gamble with uncertified memory. We recommend sourcing Samsung or Micron LPDDR5. Additionally, the PMIC’s surrounding capacitors must have ultra-low ESR. Check our electronic component sourcing service to see how we eliminate counterfeit risks.

Phase 2: Mastering the SMT Assembly Process

Step 1: Advanced Stencil & Solder Paste Printing

Industry data suggests that poor printing causes 60% of SMT assembly defects. For the RK3588, we mandate Laser-cut electropolished stencils and Type 4 or Type 5 solder paste (20-38µm) for precise deposition on 0.4mm pads.

Step 2: High-Precision Pick-and-Place

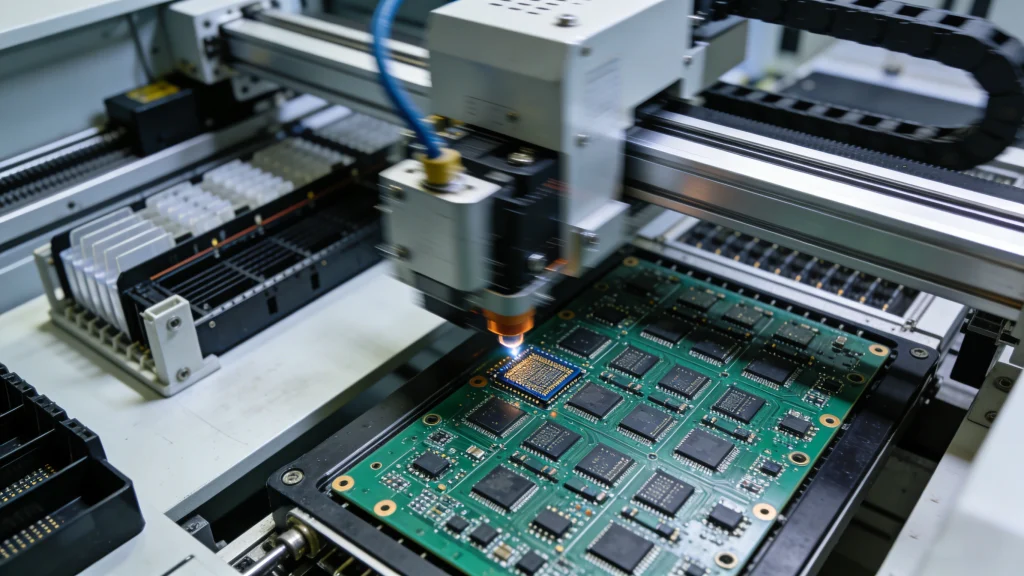

Our placement machines must accurately position 0201 or 01005 components. These tiny decoupling capacitors are vital for filtering power noise as specified in the RK3588 Technical Documentation. Our systems achieve placement accuracy within ±25µm.

Step 3: 10-Zone Nitrogen (N2) Reflow Soldering

We utilize 10-zone nitrogen reflow ovens to prevent oxidation. This ensures better wetting on fine-pitch BGA pads and eliminates the “Head-in-Pillow” (HiP) effect.

Technical Comparison: Standard vs. Precision SMT Assembly

To help you understand the requirements for high-performance boards, here is a technical breakdown:

Phase 3: Inspection & Validation

3D X-Ray Inspection (Mandatory)

Since BGA joints are hidden, standard AOI inspection
is insufficient. We use 3D AXI (Automated X-ray Inspection) to examine Voiding and Bridging under the RK3588 chip.

First Article Inspection (FAI)

Every SMT assembly run begins with a full functional test. We verify every interface—from PCIe to HDMI—ensuring 100% performance before mass production.

Final Takeaway: Reliability is the Only Spec That Matters

Whether you are shipping industrial controllers to Europe or AI boxes to the USA, your customers expect zero downtime. Reliability isn’t added at the end; it’s built directly into the SMT assembly line.

Ready to start your RK3588 project?

Request a Quick Quote or contact our technical team for a professional DFM review. Let’s build hardware that works—reliably, at scale, and ready for the global market.
