Size

69.6mm length * 53mm width * 3mm height

Connection mode

DDR4 Goldfinger

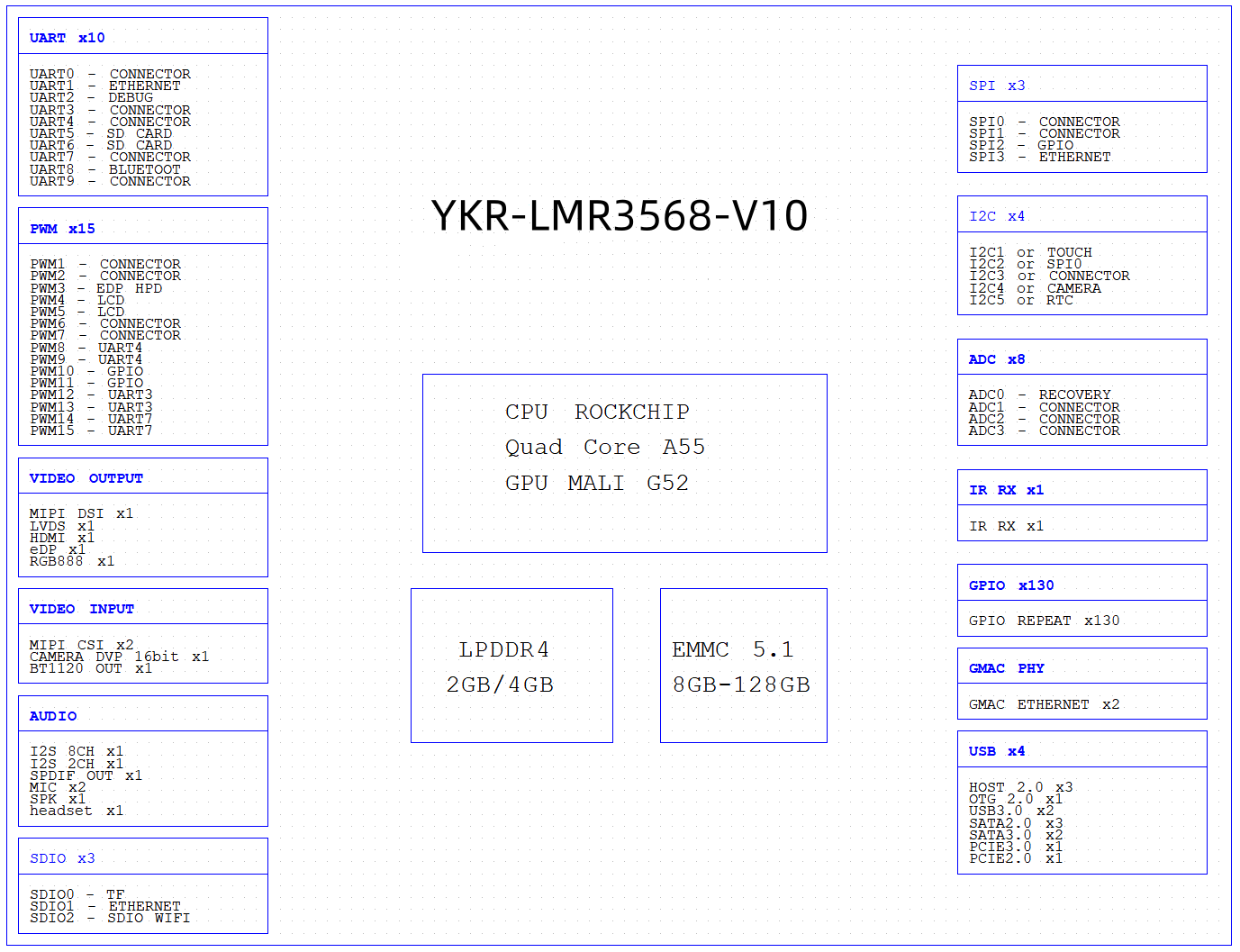

CPU

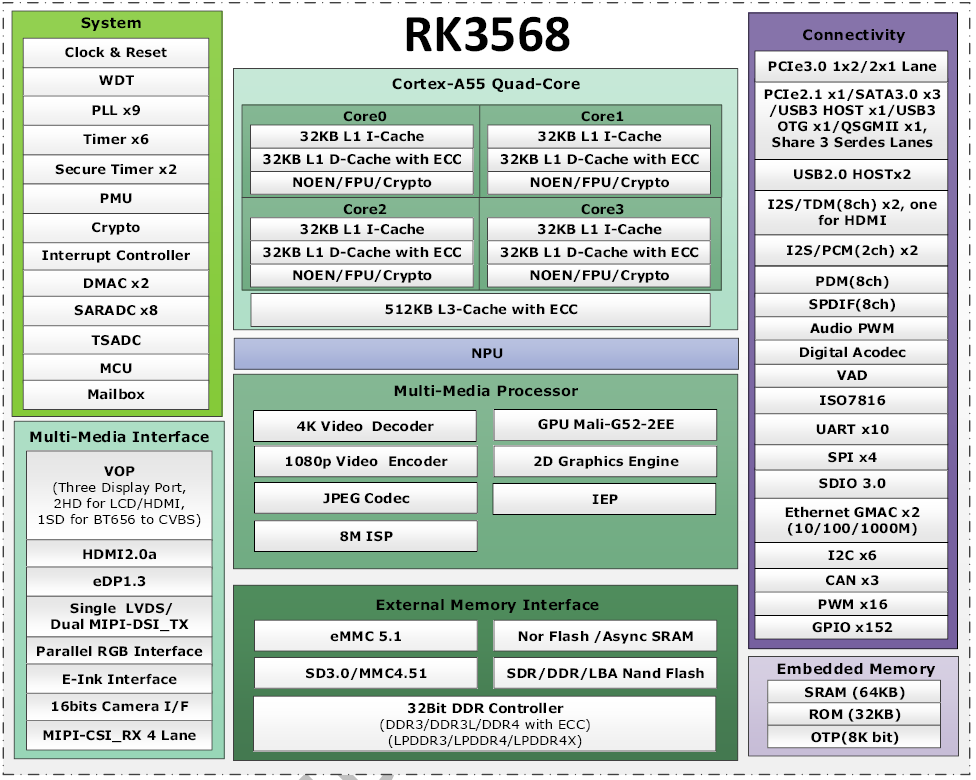

ROCKCHIP RK3568 Quad Core A55
ROCKCHIP RK3568B2 Quad Core A55
ROCKCHIP RK3568J Quad Core A55

GPU

Mali G52

Memory

LPDDR4 standard 2GB optional 4G/8GB

Storage device

EMMC 5.1 standard 8GB optional 16GB/32G/64G/128G

Power management

RK809-5

Working voltage

More than 3.3V 3A

Support system

Andriod11/Debian11 /Buildroot+ QT5.15/Ubuntu20.04/Open Harmony4.0

Operating temperature

RK3568/RK3568B2-10 + 75 degrees commercial grade

RK3568J-400.85 degree industrial grade

Life span

Continuous operation life is more than 5 years.

HDMI

HDMI HD output supports 1080p display

EDP

Support for 4Lane eDP up to 1080p

LVDS

Support single-channel LVDS display output of the highest 1280x800

MIPI DSI

Support for 4Lane up to 1080p

RGB

Support for RGB888 24-digit interface

DVP camera

Support 16 bit DVP interface camera input

MIPI CSI

The two-way CSI supports up to 800W.

I2S

Two I2S, one 8 channel / one way 2 channel

PCIE

1 way PCIE 3.0x2, the other way PCIE2.0 x1

SATA

1 way SATA3.0, other way SATA2.0

USB2.0

Four independent USB2.0, one of which is OTG

USB3.0

Two-way USB 3.0interface

Ethernet

2-way RGMII Ethernet interface

UART

10-way serial port

SPI

3-way SPI

I2C

4-way I2C

PWM

15-way PWM

SDIO

3 SDIO interfaces, one for TF card, the other for WIFI

ADC

4 analog ADC input interface

GPIO

Reusable GPIO up to 130

Voice input

Two-way analog voice input

Voice output

One way is headset output, the other is mono horn output power of 0.6W

Upgrade

Support for local upgrade of USB/ TF card

Android 11.0
Linux4.19

Debian11

Linux 5.10

Buildroot
QT5.15

Linux 5.10

Ubuntu2004

Linux 5.10

Open Harmony4.0

Linux 5.10

Hardware function

HDMI 1080p display

√

√

√

√

√

MIPI display screen (5.5in 720x1280 plus touch assembly)

√

√

√

√

√

MIPI display screen (5.5in 1080x1920 plus touch assembly)

√

√

√

√

√

MIPI display screen (7-inch 1024x600 plus touch assembly)

√

√

√

√

√

MIPI display screen (7-inch 1200x1920 plus touch assembly)

√

√

√

√

√

MIPI display screen (8-inch 800x1280 plus touch assembly)

√

√

√

√

√

MIPI display screen (10.1in 800x1280 plus touch assembly)

√

√

√

√

√

MIPI display screen (10.1in 1920x1200 plus touch assembly)

√

√

√

√

√

LVDS display screen (10.1in 1024x600 plus touch assembly)

√

√

√

√

√

EDP display screen (13.3in 1920x1080 plus touch assembly)

√

√

√

√

√

LED lamp (enter the system breathing light)

√

√

√

√

√

MIPI camera monocular GC2093 200W wide dynamic

√

√

√

√

RTC (plug-in HYM8563, power-off time saved)

√

√

√

√

√

horn

√

√

√

√

√

Headset

√

√

√

√

√

Microphone input

√

√

√

√

Camera USB interface (binocular or monocular)

√

√

√

√

2.4G/5G dual-band WIFI (AP6256 iperf test)

√

√

√

√

√

2.4G/5G Bluetooth (AP6256 supports BLE and transfers files to each other)

√

√

√

USB3.0 OTG standard port A

√

√

√

√

√

USB3.0 HOST standard port A

√

√

√

√

√

USB2.0 HOST standard port A

√

√

√

√

√

USB2.0 HOST needle arrangement type

√

√

√

√

√

PCIE3.0

√

√

√

√

√

PCIE2.0

√

√

√

√

√

SATA2.0

√

√

√

√

√

Gigabit Ethernet 0 (RTL8211F LED indicator and iperf test)

√

√

√

√

√

Gigabit Ethernet 1 (RTL8211F LED indicator and iperf test)

√

√

√

√

Debug serial port (can send and receive, can also be used as ordinary serial port)

√

√

√

√

√

Serial port 0x3Compact 4Compact 7lap9 (can send and receive data normally)

√

√

√

√

√

TF card (test maximum 128G TF card to transfer files to each other)

√

√

√

√

√

Reset key (system reset function)

√

√

√

√

√

Upgrade button (long press the power to enter the burning mode)

√

√

√

√

√

4G newsletter (move away from EC20 CAT1)

√

√

√

√

GPS+ Beidou

√

√

ADC0/1/2/3/4/5/6/7 row needle leads to data reading

√

√

√

√

√

SPI receive and send

√

√

√

√

√

CAN receive and send

√

√

√

√

√

Bus driver

PCIE driver

√

√

√

√

√

SPI driver

√

√

√

√

√

ADC driver

√

√

√

√

√

I2C driver

√

√

√

√

√

PWM driver

√

√

√

√

√

SDIO driver

√

√

√

√

√

GPIO driver

√

√

√

√

√

USB driver

√

√

√

√

√

Software function

.H264 video coding 1080p 100fps

√

.H264 video decoding 4K 60fps

√

.H265 video coding 1080p 100fps

√

.H265 video decoding 4K 60fps

√

USB printer

√

USB upgrade

√

√

√

√

√

TF card upgrade

√

OTA upgrade

√

Restore factory settings

√

serial number

√

MAC address

√

Body sleep awakening

√

Power supply parameters

Voltage

3.3V

3.3V

3.4V

Ripple

--

50mV

RTC (HYM8563)

0.3uA

0.9uA

1.2uA

Core board input 3.39V

Current test

Power-on current

273mA

345mA

465mA

Desktop static current

325mA

Environment

Relative humidity

--

65%

75%

Operating temperature

-10 ℃

--

75 ℃

Storage temperature

-30 ℃

-0 ℃

100 ℃
